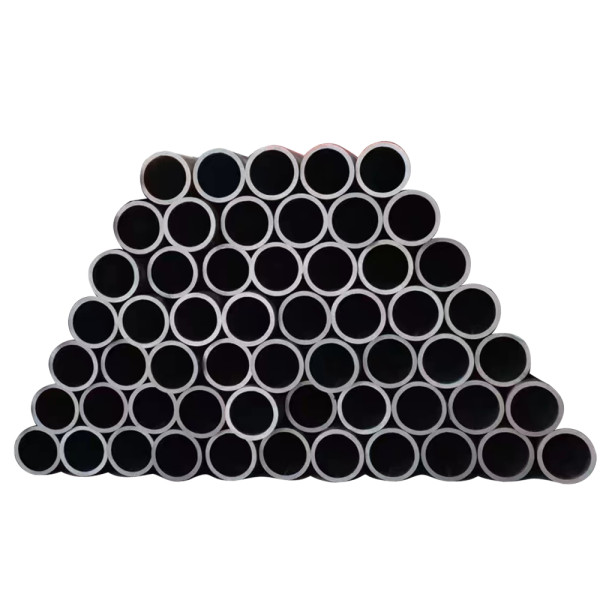

EN 10216-2 Carbon Seamless Steel Pipe

EN 10216-2 Carbon Seamless Steel Pipe

EN 10216-2 Carbon Seamless Steel Pipe
CategoriesCarbon Seamless Steel Pipe
BrandBAOLAI Steel Pipe Wholesale Manufacturer
CertificationISO
StandardEN 10216-2
GradeP195GH/ P235GH/ P265GH
Out Diameter1/2" - 24" ( DN25 - DN600)
Wall Thickness2 - 60 mm
Length5.8-12M or Customised
EndsPlain, Bevel, Threaded or Groove
UsagePressure
Update Time2022/10/4
Detail Information
Specification
EN 10216-2 Seamless Steel Pipe
EN 10216-2 steel pipe is seamless steel tubes for pressure propose, non-alloy and alloy steel tubes with specified elevated tempreature properties.
Available size
Note: Some of the main specifications are shown below, please contact us for more details.
Size
OD
Tolerance
THK Toleranace
Remark
NPS
DN
OD(mm)
mm
SCH10(mm)
SCH40(mm)
1. For pipe ≤ NPS 1-1/2", OD tolerance is ±0.4mm.

2. For pipe ≥ NPS 2", OD tolerance is ± 1%.

3. The min THK at any point is not more than 12.5%.

4. The max THK is not defined in ASTM A53, and Baolai refers to ASTM A530  with 20%, 22.5% or 15% as t/D ratio.
1/2"
15
21.3
20.9~21.7
/
2.42~3.32
3/4"
20
26.7
26.3~27.1
1.85~2.53
2.51~3.44
1"
25
33.4
33.0~33.8
2.42~3.32
2.96~4.06
1-1/4"
32
42.2
41.8~42.6
2.42~3.32
3.12~4.27
1-1/2"
40
48.3
47.9~48.7
2.42~3.32
3.22~4.42
2"
50
60.3
59.7~60.9
2.42~3.32
3.42~4.69
2-1/2"
65
73
72.3~73.7
2.67~3.66
4.52~6.19
3"
80
88.9
88.0~89.8
2.67~3.74
4.80~6.31
4"
100
114.3
113.2~115.4
2.67~3.74
5.27~7.37
5"
125
141.3
139.9~142.7
2.98~4.17
5.73~8.02
6"
150
168.3
166.6~170.0
2.98~4.17
6.22~8.71
8"
200
219.1
216.9~221.3
4.18~5.86
6.16~8.62
10"
250
273.1
270.4~275.8
4.18~5.86
6.83~9.56
One-stop service to facilitate your purchase
The Baolai Group continues to provide service and support after your purchase. To save you time, we offer you numerous value-added services such as processing, logistics management and testing.
Processing Services:
  • OEM & ODM
  • Protective Coatings
  • Saw and Flame Cutting
  • Beveling, Threading and Grooving

  • For more information, please contact our service team.

More than a manufacturer and distributor, we focus on your business, One-stop Solution For All Your Piping Needs.
