Structural Steel For Steel Buildings And Structures

Structural Steel For Steel Buildings And Structures

Structural Steel For Steel Buildings And Structures
Structural Steel For Steel Buildings And StructuresStructural Steel For Steel Buildings And StructuresStructural Steel For Steel Buildings And StructuresStructural Steel For Steel Buildings And StructuresStructural Steel For Steel Buildings And Structures
CategoriesC Channel
BrandBAOLAI Steel Pipe Wholesale Manufacturer
ModelC Channel
StandardASTM A572/ ASTM A500 / ASTM A36/ EN/ JIS
Thickness1 - 20 mm
Length2-12M / customized
GradeGr.B/ Gr.50
SurfacePre-Galvanized/Hot Dipped Galvanized/Powder Coated
ProcessPunch/ Cutting/ Welding
UsageSteel Structure
CertificationUL/ FM/ API/ CE/ ISO
Unit PriceUS $ 850-900 / metric ton
FOB portTianjin port
Terms of PaymentL/C, D/A, D/P, T/T
Update Time2022/9/25
Detail Information
PRODUCT DESCRIPTION
Product Name
ODM C Channel Steel in Factory
Standard
ASTM A572 ASTM A500/ ASTM A36/ EN/ JIS
Material
Gr.B/ Gr.50/ Aluminum
Technical
Cold Formed by Formed Machine
Thickness
1 - 20 mm
Height
30 - 500 mm
Length
1 - 12 M/ Customised
Surface
Pre-Galvanized/ Hot dip galvanized /  Powder Coated
Package

50~100pcs by bundle/ wrapped by plastic bag

Application

Steel Structural, Ware House, Office, Supermarket, Lightweight Roof Trusses, Brackets, Doors, Railway and Traffic, Vehicle, Machine

Certification
UL, FM, API, CE, ISO
Payment Item
T/T, L/C
Delivery Time
Shipped in 30-40 days after paying 30% deposit received or as your request
C Channel Steel Process

The C-shaped steel is automatically formed by the C-shaped steel forming machine, and the C-shaped steel forming machine can automatically complete the C-shaped steel forming process according to the given C-shaped steel size.


It is widely used in purlins and wall beams of steel structure buildings, and can also be combined into lightweight roof trusses, brackets and other building components. In addition, it can also be used for columns, beams and arms in mechanical light industry manufacturing.

Product Standard & Performance Analysis
Standard (Garde)
Standard Name
ASTM A572 ( 42, 50, 55, 60, 65, 65)

High Strength Low-Alloy Columbium-Vanadium Structural Steel

ASTM A500 (A, B, C, D)

A500 Cold-Formed Welded and Seamless Carbon Steel Structural Tubing in Round and Shapes

Standard
Grade
Chemical Components (%)
Mechanical Properties
C
Mn
p
S
Tensile Strength (Mpa)
Yeild Strength (MPa)
ASTM A572
42
0.21
1.35
0.030
0.030
415
290
50
0.23
1.35
0.030
0.030
450
345
55
0.25
1.35
0.030
0.030
485
380
60
(Leg ≤2in.)
0.26
1.35
0.030
0.030
520
415
65
(1<Leg<2)
0.23
1.35
0.030
0.030
550
450
65
(Leg≤1)
0.26
1.35
0.030
0.030
550
450
ASTM A500
A
0.26
1.35
0.035
0.035
310
270
B
0.26
1.35
0.035
0.035
400
315
C
0.23
1.35
0.035
0.035
425
345
D
0.26
1.35
0.035
0.035
400
250
Products Pictures

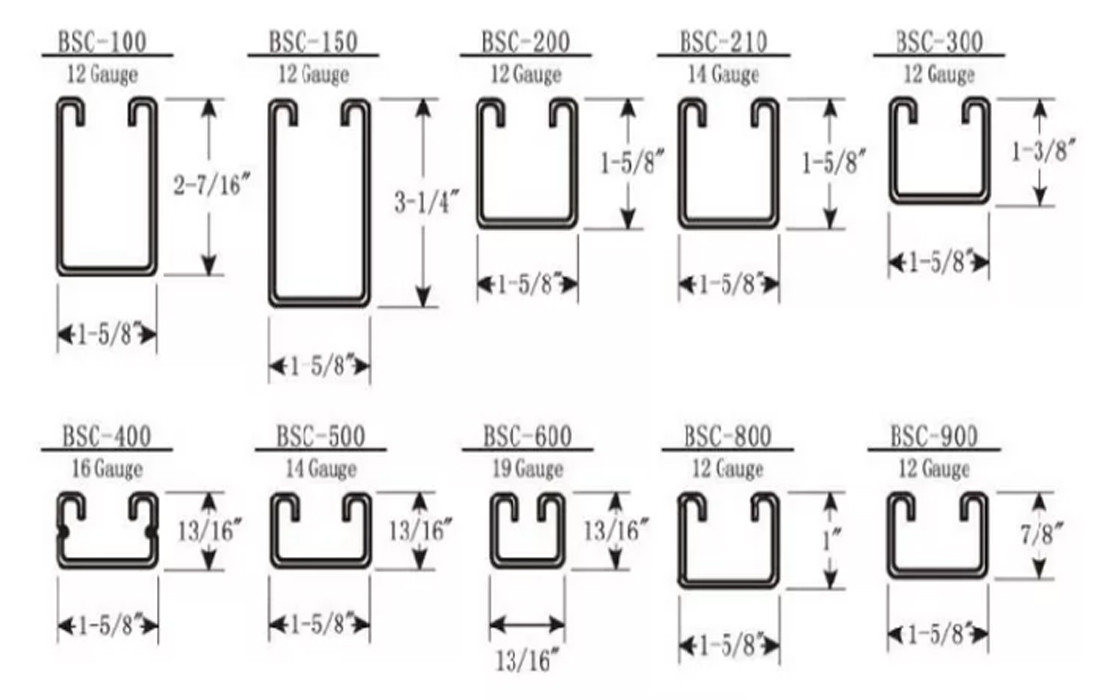

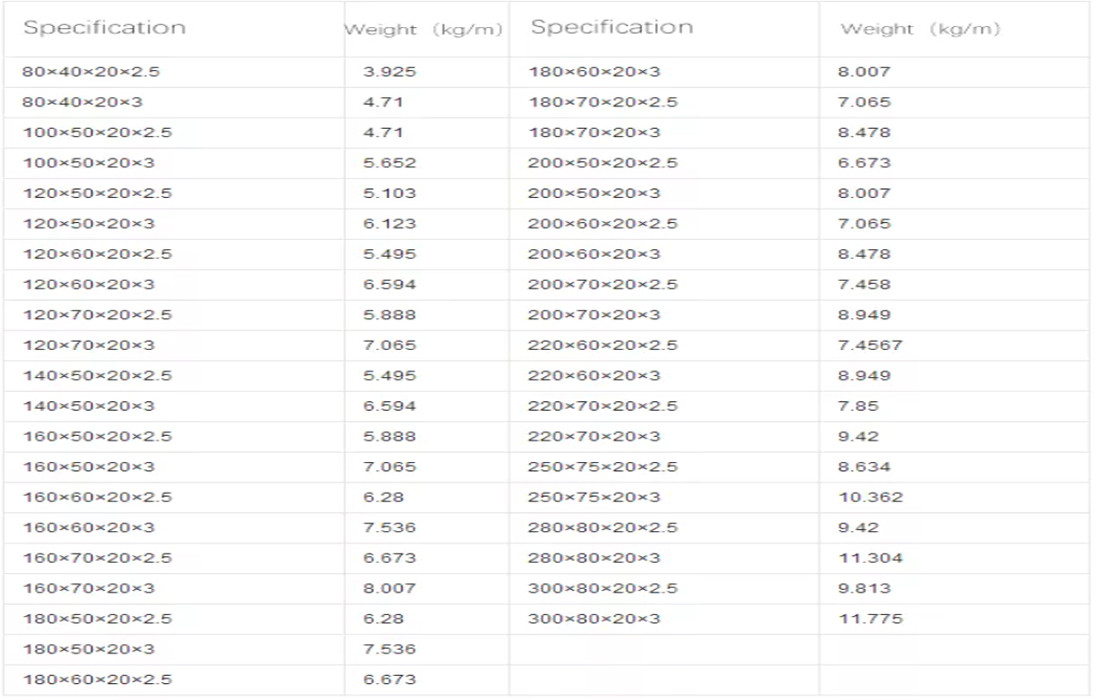

C-shaped Steel Chart

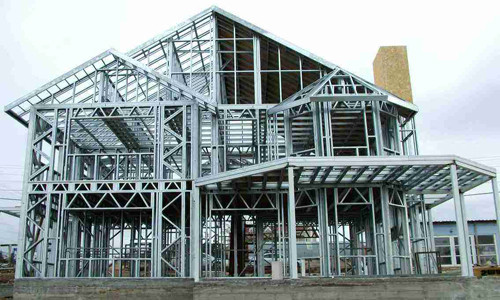

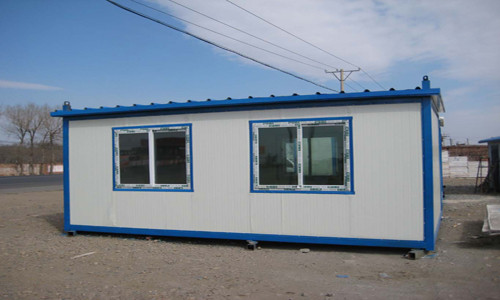

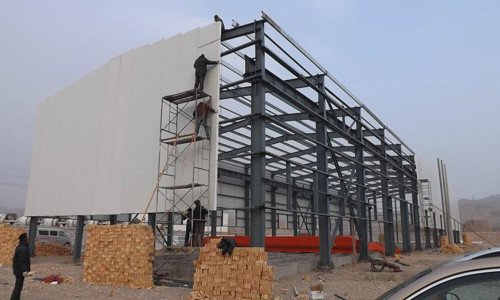

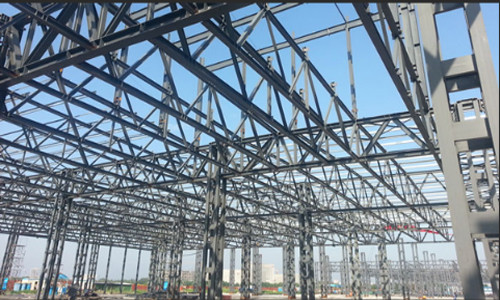

application
Company Information & Advantage

TIANJIN BAOLAI STEEL INDUSTRY GROUP CO., LTD is a comprehensive company, which focus on welded steel pipes and other steel products. Established in 1991, Baolai is among the first few specialized companies that develop and manufacture ordinary and special diameter welded steel pipes. We manufacture ASTM, BS, DIN and JIS standards pipes with galvanizing facility. Our annual capacity is approximately 1,200,000MT in various specifications and export 150,000MT to all over the world.


We have been awarded "Top Ten Collective and Private Exporters of Tianjin", "Top Ten Exporters of Hexi District" by Tianjin Hexi Commerce Department, "Top 100 Enterprises of Tianjin"  by Tianjin government in two consecutive years and a credit rating "AAA" by Banks.

Baolai Steel Advantage


High Standard: With world-class manufacturers, globe certificates approval (UL, FM, API, CE, ISO, etc).

Low Cost & High Quality: Intelligent production equipment to ensure quality  warehouses; mass production and close to seaport to ensure low cost.

24 Hours Reply: Professional sales manager quickly reply within 24 hours.

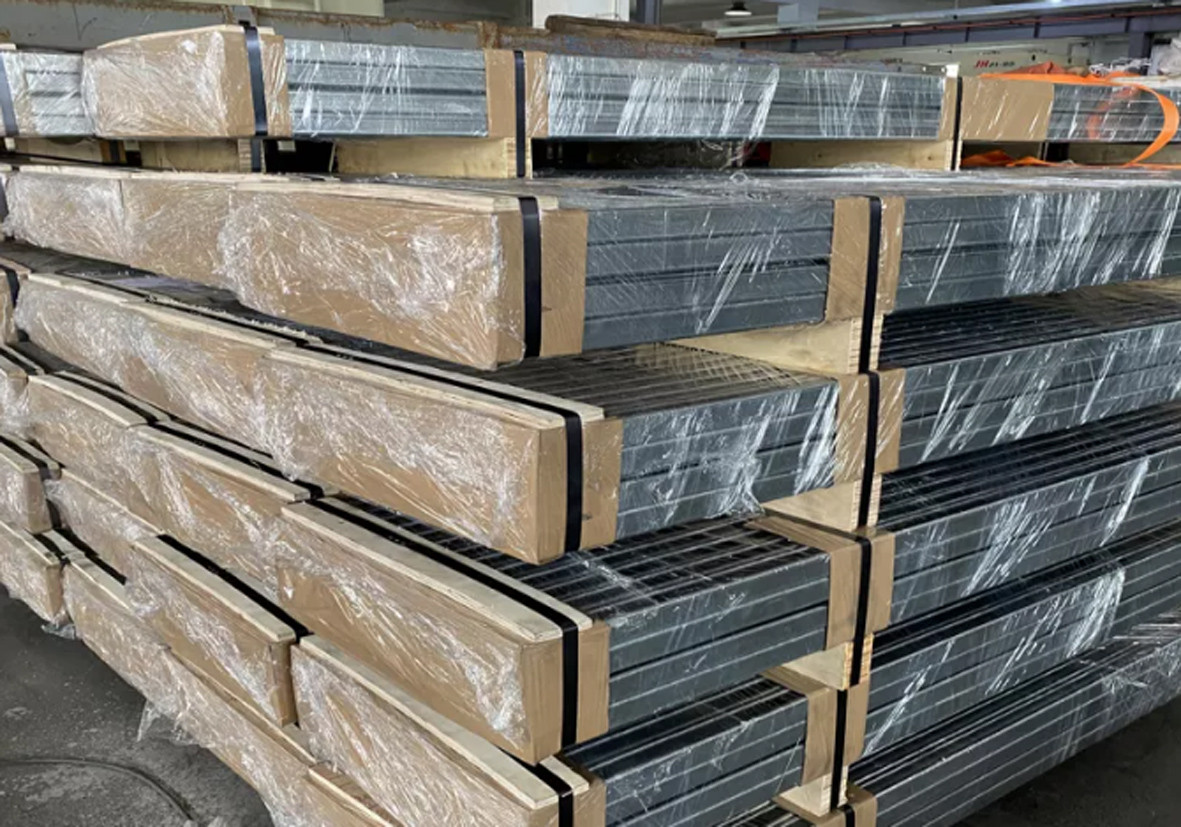

Packing & Delivery
Dundle
50~100pcs by Bundle
MOQ
The minimum order quantity is 5 Ton
Package

Wrapped by Plastic Bag

Delivery Time
Shipped in 30-40 days after paying 30% advance
FAQ

Q:Are you trading company or manufacture?
A:Both. Baolai Fortune Steel has 4 production area in China.

Q:Can I have a trial order of C Channel only for several tons?
A:We can ship the regular specifications with LCL service.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free, with the cost of freight paid by customer.

Q:How long is your delivery time?
A:Generally it is 3-5 days if goods are in stock. or around 30 days if the goods are not in stock and it is according to order requirement.

Q:What is your terms of payment?
A: Payment<=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Or L/C at sight (For big order, LC at 30-90days can be acceptable)
