ERW Pipe ASTM A53 ERW Carbon Steel Pipe

ERW Pipe ASTM A53 ERW Carbon Steel Pipe

ERW Pipe ASTM A53 ERW Carbon Steel Pipe
ERW Pipe ASTM A53 ERW Carbon Steel PipeERW Pipe ASTM A53 ERW Carbon Steel PipeERW Pipe ASTM A53 ERW Carbon Steel PipeERW Pipe ASTM A53 ERW Carbon Steel PipeERW Pipe ASTM A53 ERW Carbon Steel Pipe
CategoriesERW
BrandBAOLAI Steel Pipe Wholesale Manufacturer
Model1/2"-26" ( DN15 - DN650)
Thickness2 - 18 mm
Length5.8m, 6m, 6.4m, 7.3m,
TechnicalHigh Frequency Resistence Welding
SurfaceRed, Black, Vanish,Oil, Galvanized, 3PE, etc
EndsPlain, Bevel, Threaded or Grooved
CertificationUL/ FM/ API/ CE/ ISO
Unit PriceUS $ 850-900 / metric ton
FOB portTianjin port
Terms of PaymentL/C, D/A, D/P, T/T
Update Time2022/10/4
Detail Information
PRODUCT DESCRIPTION
Standard for ERW Steel Pipe
ASTM A53 standard is Steel, Pipe,Black and Hot-Dipped Zinc-Coated Steel Pipes Welded and Seamless.
ERW steel pipe is a steel pipe rolled by steel plate and welded by high frequency welding, mainly for ordinary wall thickness and thin wall thickness steel pipe, with precise wall thickness and light weight.
ERW steel pipes are mainly used for the transportation of water, oil and gas, and can also be used for structures and can be welded.

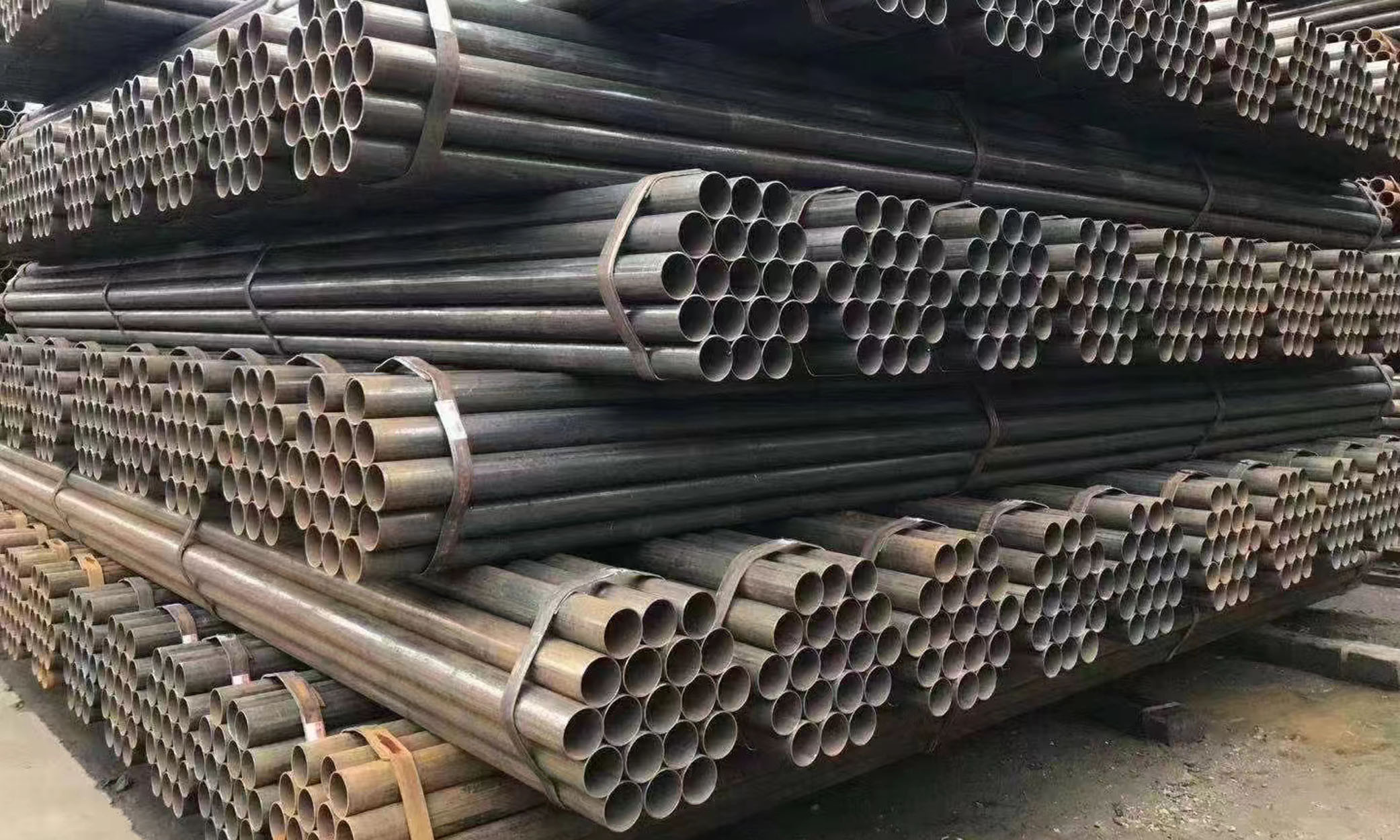

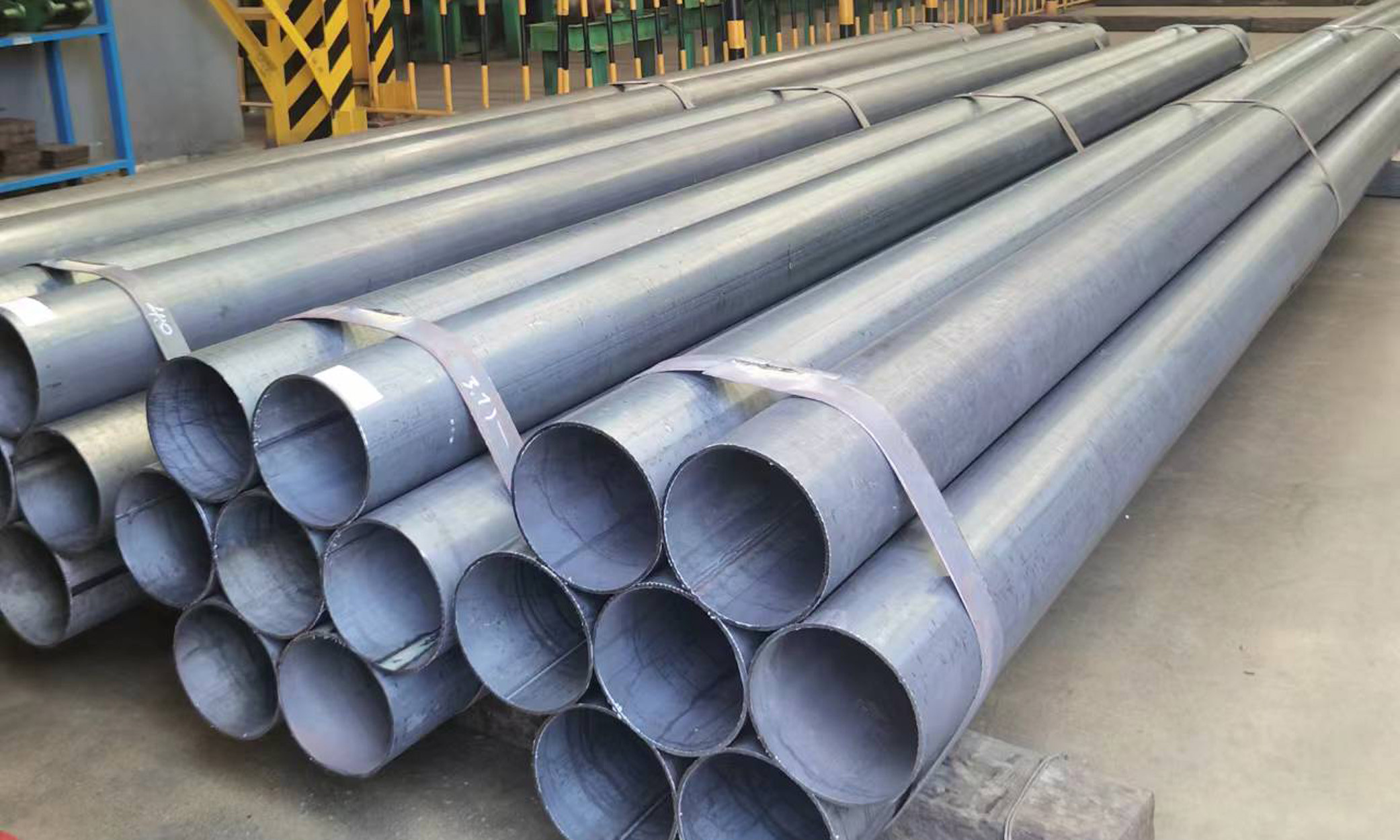

Products Pictures
ERW Steel Pipe Chart
Size
OD
Tolerance
THK Toleranace
Remark
NPS
DN
OD(mm)
mm
SCH10(mm)
SCH40(mm)
1. For pipe ≤ NPS 1-1/2", OD tolerance is ±0.4mm.

2. For pipe ≥ NPS 2", OD tolerance is ± 1%.

3. The min THK at any point is not more than 12.5%.

4. The max THK is not defined in ASTM A795, and Baolai refers to ASTM A530  with 20%, 22.5% or 15% as t/D ratio.
1/2"
15
21.3
20.9~21.7
/
2.42~3.32
3/4"
20
26.7
26.3~27.1
1.85~2.53
2.51~3.44
1"
25
33.4
33.0~33.8
2.42~3.32
2.96~4.06
1-1/4"
32
42.2
41.8~42.6
2.42~3.32
3.12~4.27
1-1/2"
40
48.3
47.9~48.7
2.42~3.32
3.22~4.42
2"
50
60.3
59.7~60.9
2.42~3.32
3.42~4.69
2-1/2"
65
73
72.3~73.7
2.67~3.66
4.52~6.19
3"
80
88.9
88.0~89.8
2.67~3.74
4.80~6.31
4"
100
114.3
113.2~115.4
2.67~3.74
5.27~7.37
5"
125
141.3
139.9~142.7
2.98~4.17
5.73~8.02
6"
150
168.3
166.6~170.0
2.98~4.17
6.22~8.71
8"
200
219.1
216.9~221.3
4.18~5.86
6.16~8.62
10"
250
273.1
270.4~275.8
4.18~5.86
6.83~9.56
Standard
Grade
Chemical Components (%)
Mechanical Properties
C
Si
Mn
P
S
Ni & Cu
Tensile Strengt
(Mpa)
Yield Strength
(Mpa)
ASTM A53
A
≤0.25
-
≤0.95
≤0.05
≤0.06
0.40
≥330
≥205
B
≤0.30
-
≤1.2
≤0.05
≤0.06
0.40
≥415
≥240
ERW Steel Pipe Stock
application
More than a manufacturer and distributor, we focus on your business, One-stop Solution For All Your Piping Needs.
