Shore Construction Cast Handle Heavy Duty Steel Adjustable Props

Shore Construction Cast Handle Heavy Duty Steel Adjustable Props

Shore Construction Cast Handle Heavy Duty Steel Adjustable Props
Shore Construction Cast Handle Heavy Duty Steel Adjustable PropsShore Construction Cast Handle Heavy Duty Steel Adjustable PropsShore Construction Cast Handle Heavy Duty Steel Adjustable PropsShore Construction Cast Handle Heavy Duty Steel Adjustable PropsShore Construction Cast Handle Heavy Duty Steel Adjustable Props
CategoriesSteel Support
BrandBAOLAI Steel Pipe Wholesale Manufacturer
Model60/48 mm
Out / Inner Tuber60/48 mm, 56/48 mm, 48/40 mm
Thickness1.6 - 2.5 mm
Adjustable Length1.6-6 M
Update Time2022/9/25
Detail Information
PRODUCT DESCRIPTION
Product Name
Adjustable Steel Prop
Standard
EN 1065, BS1139
Grade









Q195, Q215, Q235, Q355 (S195, S235,S355,STK400 / STK500,Gr.B)








Material
Q235 for welded steel pipe and 20# for seamless steel pipe
Outer Tube/ Inner Tube
48/40 mm, 56/48 mm, 60/48 mm
Wall Thickness
1.5 - 2.5mm
Adjustable Length
1.5 - 6 M according customising
Surface
Pre-galvanized(30 - 275 g/㎡)/  Hot dip galvanized (210 -550 g/㎡)
Painting/ Power Coated
Top / Base Plate
Flower/ Square / U Head
Prop Strength
1KN-6KN Depending on the steel grade and thickness, the supporting weight is different.good bearing capacity,durable & stable

Proformance
Good Bearing Capacity, Durable & Stable
Application
Widely used in construction, stage, concrete formwork, tunnel, demolition, commercial industry, bridge road, airport, oil and gas,

shipping, oil and other industries.

Certification
ISO 9001
Test
SGS/ BV or according to you request
MOQ
1*20 GP or 1*40 GP container
Payment Item
T/T, L/C
Delivery Time
Shipped in 30-40 days after paying 30% deposit received or as your request
Adjustable scaffolding steel props are widely used in different supporting areas.Slab formwork and table formwork with its high loading capacity may meet maximum stability for your site jobs.Steel props also can be just to different sizes.

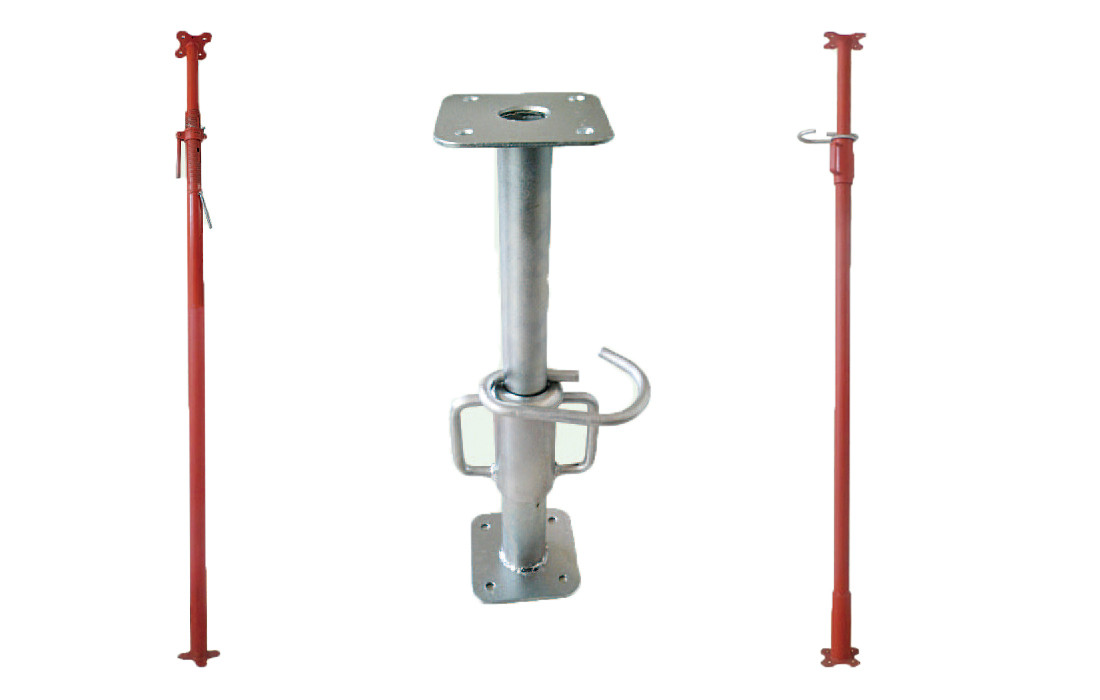

Products Details
Product Name
Heavy Duty Steel Prop
Out Tuber/ Inner Tube
60/ 48 mm
Wall Thickness
1.6-2.5 mm
Plate Size
120*120*5/6 mm
Adjustable Length
600 - 1000mm/ 900-1500mm/ 1200-2000mm
1800-3200mm/ 2000-3500mm/ 2200-3900mm
2500-4500mm/ 3000-5000mm/ 3500-5500mm
Product Name
Light Duty Steel Prop
Out Tuber/ Inner Tube
60/ 48mm / 56/48mm
Wall Thickness
1.6-2.5 mm
Plate Size
120*120*5/6 mm
Adjustable Length
900 - 1500mm/ 1200-2000mm
1800-3100mm/ 2000-3500mm
2200-3900mm/ 2500-4500mm
Product Name
U Steel Prop (with Cup Nut)
Out Tuber/ Inner Tube
60/ 48mm / 56/48mm
Wall Thickness
1.6-2.5 mm
Plate
120*120*5/6 mm
Adjustable Length
600 - 1000mm/ 900-1500mm/ 1200-2000mm
1800-3100mm/ 2000-3500mm/ 2200-3900mm
2500-4500mm/ 3000-5000mm/ 3500-5500mm
Accessories
Products Painted
Blue Painted
Red Painted
Black Painted &
Hot-Dipped Galvanized
Yellow Painted
power coated and more

Baolai Steel Advantage


Make sure that each part is fully welded to the main body.

All steel pipes used are primary pipes.

It is easy to assemble and has excellent stability and load bearing capacity.

Packing & Delivery
Dundle
We provide packing by Bundle and Wooden Box (convenient of loading)
Bulk
Load more to reduce unit price
The way of package accroding to customer requirements.
MOQ
25 tons/container and 5 tons/size for a trial order
Delivery Time
Shipped in 30-40 days after paying 30% advance
