PVC Electrical Matellic Tubing

PVC Electrical Matellic Tubing

PVC Electrical Matellic Tubing
PVC Electrical Matellic TubingPVC Electrical Matellic TubingPVC Electrical Matellic TubingPVC Electrical Matellic Tubing
CategoriesEMT & IMC Steel Pipe
BrandBAOLAI Steel Pipe Wholesale Manufacturer
Model1" EMT Conduit
StandardANSI C80.3 / UL797
Out Diameter1/2"-4"
Thickness1.07-2.11 mm
Length3.05m (10ft)
StandardANSI C80.3 / UL797
EndPlain
CertificationUL/ FM/ API/ CE/ ISO
SurfacePre-Galvanized/ Hot Dipped Galvanized
UsageWire and Cable Protection
FOB portTianjin port
Terms of PaymentL/C, D/A, D/P, T/T
Update Time2022/9/25
Detail Information
PRODUCT DESCRIPTION
Product Name
Electrical Conduit ANSI C80.3/ UL797 Electrical Metallic Tubing for Cable Protection
Technical
High Frequency Resistance Welding
Out Diameter
1/2" - 4" (21.3 - 114.3 mm)
Wall Thickness
1.07 - 2.11 mm
Tolereance
±12.5%
Length
3.05/ 3M
Surface
Pre-Galvanized/ Hot dip galvanized / PVC
Ends
Plain
Protector
Plastic Cap
Inspection
With Chemical Composition an Mechanical Properties Testing,  Flattening test, Hydraulic test, Dimensional and Visual Inspection Non-destructive inspection
Application
Cable Protection
Certification
UL, FM, API, CE, ISO
Payment Item
T/T, L/C
Delivery Time
Shipped in 30-40 days after paying 30% deposit received or as your request
Products Pictures

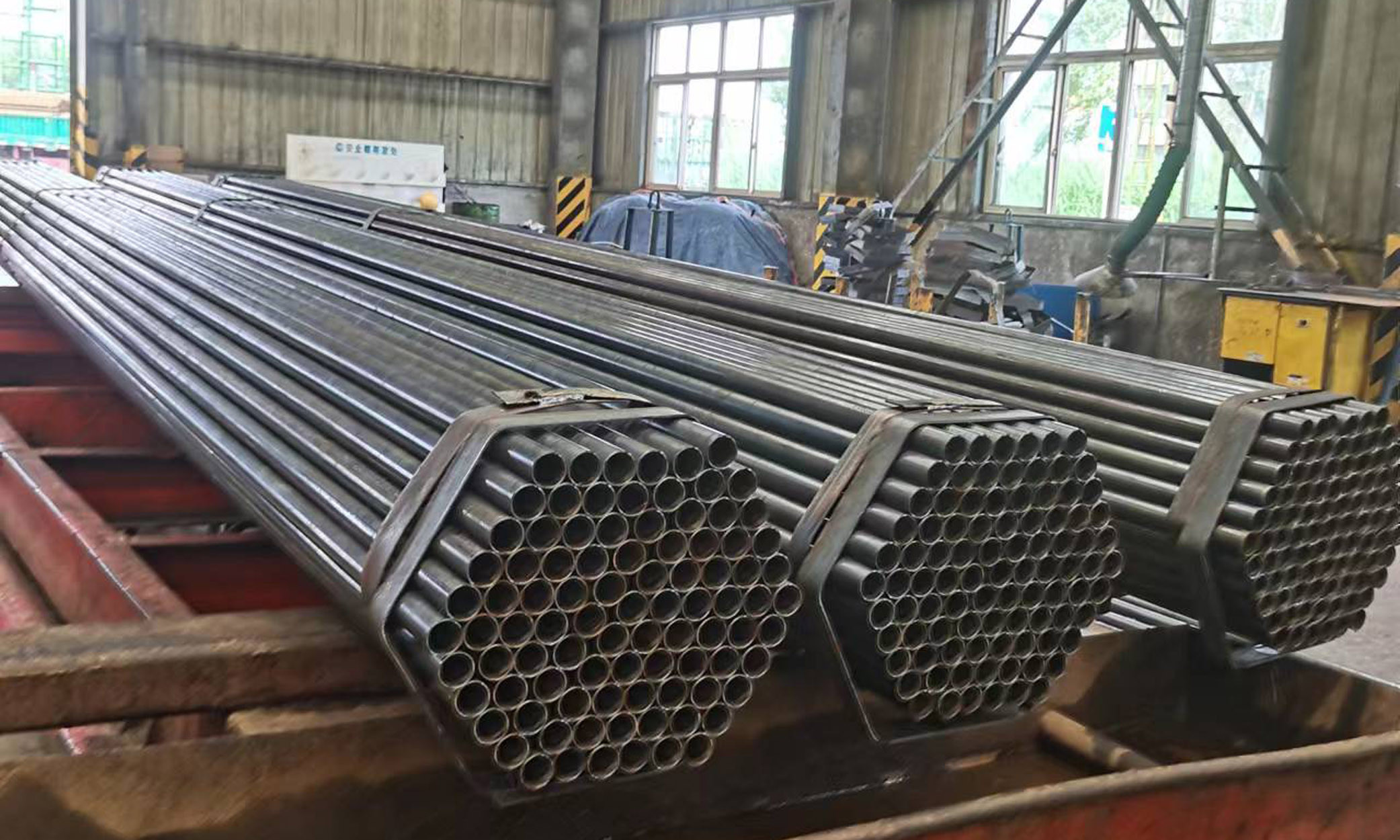

EMT picture

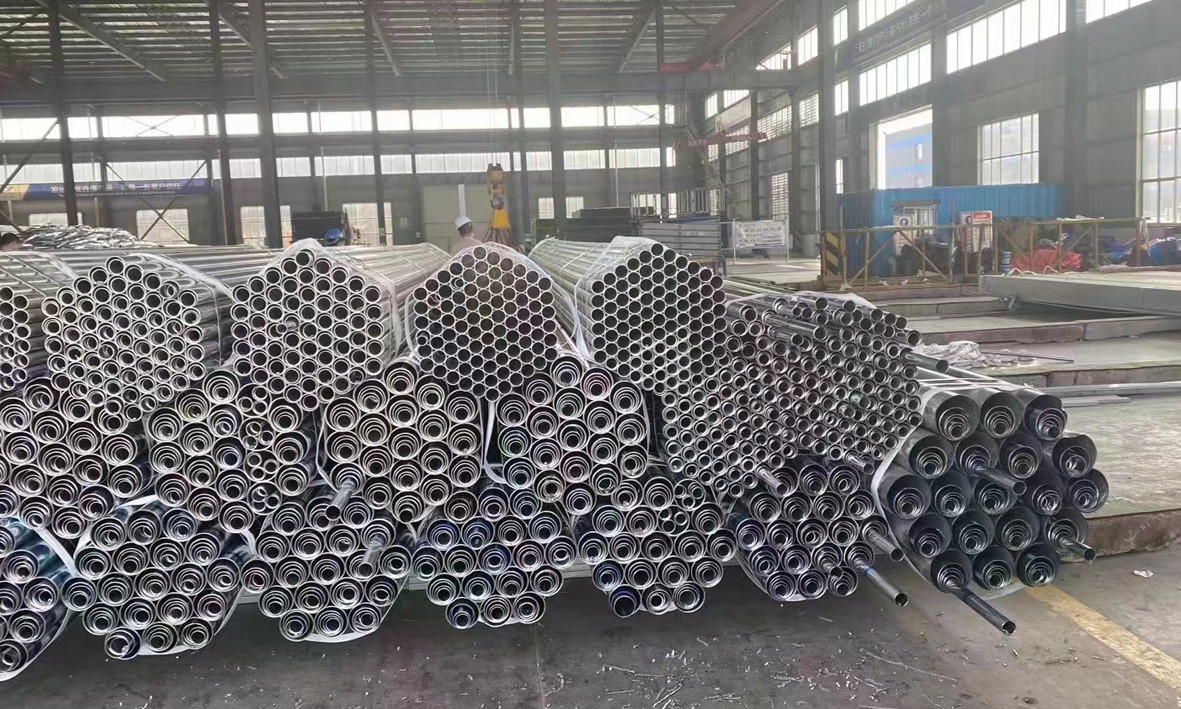

EMT pipe picture
ANSI C80.3/ UL797 EMT Steel Pipe Chart
Size
Product Code
OD
Thickness
Length
NPS
Pre-Galvanized
Hot dipped Galvanized
mm
mm
mm
1/2"
EMT-050P
EMT-050H
17.93
1.07
3050
3/4"
EMT-075P
EMT-075H
23.42
1.25
3050
1"
EMT-100P
EMT-100H
29.54
1.45
3050
1-1/4"
EMT-125P
EMT-125H
38.35
1.65
3050
1-1/2"
EMT-150P
EMT-150H
44.20
1.65
3050
2"
EMT-200P
EMT-200H
55.80
1.65
3050
2-1/2"
EMT-250P
EMT-250H
73.03
1.83
3000
3"
EMT-300P
EMT-300H
88.9
1.83
3000
4"
EMT-400P
EMT-300H
114.3
2.11
3000
UL797 EMT Steel Pipe Chart
Trade Size Designator
Nominal Outsite Diameter
Nominal Wall Thickness
Unit Length
Nominal Weight
Inch
mm
Inch
OD(mm)
Inch
mm
M
mm
kg/pc
1/2"
16
0.706
17.9
0.042
1.07
3050
10
1.46
3/4"
21
0.922
23.4
0.049
1.25
3050
10
2.21
1"
27
1.163
29.5
0.057
1.45
3050
10
3.08
1-1/4"
35
1.510
38.4
0.065
1.65
3050
10
4.74
1-1/2"
41
1.740
44.2
0.065
1.65
3050
10
5.49
2"
53
2.197
55.8
0.065
1.65
3050
10
6.99
Company Information & Advantage

TIANJIN BAOLAI STEEL INDUSTRY GROUP CO., LTD is a comprehensive company, which focus on welded steel pipes and other steel products. Established in 1991, Baolai is among the first few specialized companies that develop and manufacture ordinary and special diameter welded steel pipes. We manufacture ASTM, BS, DIN and JIS standards pipes with galvanizing facility. Our annual capacity is approximately 1,200,000MT in various specifications and export 150,000MT to all over the world.


We have been awarded "Top Ten Collective and Private Exporters of Tianjin", "Top Ten Exporters of Hexi District" by Tianjin Hexi Commerce Department, "Top 100 Enterprises of Tianjin"  by Tianjin government in two consecutive years and a credit rating "AAA" by Banks.

Baolai Steel Advantage


High Standard: With world-class manufacturers, globe certificates approval (UL, FM, API, CE, ISO, etc).

Low Cost & High Quality: Intelligent production equipment to ensure quality  warehouses; mass production and close to seaport to ensure low cost.

24 Hours Reply: Professional sales manager quickly reply within 24 hours.


Packing & Delivery
Dundle
OD 219mm and below In hexagonal seaworthy bundles packed by steel strips, With two nylon slings for each bundles
Bulk
Above OD 219mm in bulk or according to custom opinion
Package

The outside of the steel pipe is wrapped with plastic sheeting

Delivery Time
Shipped in 30-40 days after paying 30% advance
FAQ

Q:Are you trading company or manufacture?
A:Both. Baolai Fortune Steel has 4 production area in China.

Q:Can I have a trial order of EMT steel pipe only for several tons?
A:We can ship the regular specifications with LCL service.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free, with the cost of freight paid by customer.

Q:How long is your delivery time?
A:Generally it is 3-5 days if goods are in stock. or around 30 days if the goods are not in stock and it is according to order requirement.

Q:What is your terms of payment?
A: Payment<=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Or L/C at sight (For big order, LC at 30-90days can be acceptable)
